VEUHM3546 BLD

Name: VEUHM3546 BLD
Brand: Baldor Reliance
SKU: VEUHM3546 BLD
Price: 930.83 USD
Availability: OutOfStock

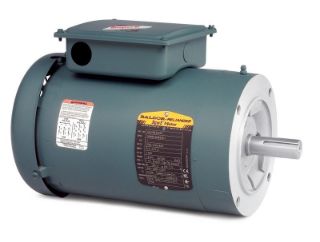

Actual Product May Vary From Image

Product Details

Manufacturer:

Baldor Reliance

Manufacturer part number:

VEUHM3546

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

$930.83 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 208-230/460 VAC; Torque Rating: 2.97 LB-FT Full Load, 12.5 LB-FT Break Down, 6.16 LB-FT Pull-Up, 8.49 LB-FT Locked-Roter At 460 V, 60 HZ, 1 HP; Horsepower: 1 HP; Speed Rating: 1760 RPM; Frequency Rat

Application

General Purpose

Features

1HP,1760RPM,3PH,60HZ,56C,3519M,TEFC,F3,N

Specifications

Base:	No mounting
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	56
Frequency Rating:	60 Hz
Full Load Current:	1.5 A; 3.0 A; 3.1 A
Horsepower:	1.000 hp
Insulation Class:	F
Mounting:	F3
NEMA Design:	B
NEMA Nominal Efficincy:	85.50%
Phase:	Three Phase
Power Factor:	71
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,760 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 230 V; 208 V
