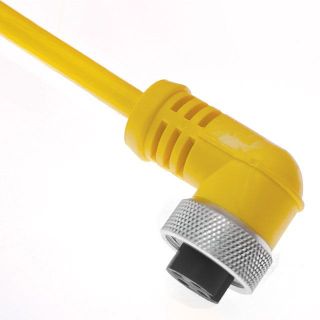

MINC-4FPX-5M-R MEN

Name: MINC-4FPX-5M-R MEN
Brand: Mencom Corporation
SKU: MINC-4FPX-5M-R MEN
Price: 52.25 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Mencom Corporation

Manufacturer part number:

MINC-4FPX-5M-R

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$52.25 / EA

Description

Type

Cables

Description

MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.

Specifications

Amerage Rating:	5.5
Cable Jacket Material:	PVC
Cable Length (FT):	15
Cable Length (M):	5
Cable OD:	0.29
Color Code:	Cenelec
Component Type:	Cordset
Coupling Thread Gender 1:	Female
Gender:	Female
Gland Lower Range:	0.29
Gland Upper Range:	0.29
Groundwire:	No
Home Run Pin Count:	4
Ingress Protection:	IP67
Jacket Color:	Yellow
Mating Thread Type Head 1:	7/8-16UN2
Mencom Series:	MIN Size I
Nut:	No
Orientation Head 1:	Female Right Angle
Pin Count:	4
Rated Block:	Single Ended Cordset
Shell Coupling Nut Mater:	Nickel Plated Brass
Voltage Rating:	300
Wire Gauge:	18
