EM3661T BLD

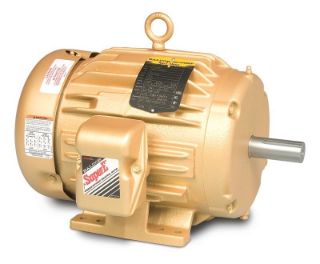

Picture of EM3661T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM3661T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,580.61 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 230/460 VAC; Horsepower: 3 HP; Speed Rating: 1760 RPM; Frequency Rating: 60 HZ; Full Load Current: 8/4 AMP; Torque Rating: 8.93 LB-FT Full Load, 32 LB-FT Break Down, 19.5 LB-FT Pull-Up, 21.45 LB-FT L

Application

General Purpose

Features

3HP,1755RPM,3PH,60HZ,182T,0632M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:182
Frequency Rating:60 Hz
Full Load Current:8.2 A; 4.1 A; 8.6 A
Horsepower:3.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:77
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,755 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
182T
Frequency Rating
60 Hz
Horsepower
3 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
208-230/460

Customers who bought this item also bought

Picture of B51 GAT

B51 GAT

MFG: Gates Corporation
MFG#:B51
Info:Gates® Hi-Power® II B51 Banded Classical Heavy Duty V-Belt, B Section, 21/32 in W Top, 54 in L Outside, 13/32 in THK, EPDM
$ -.--

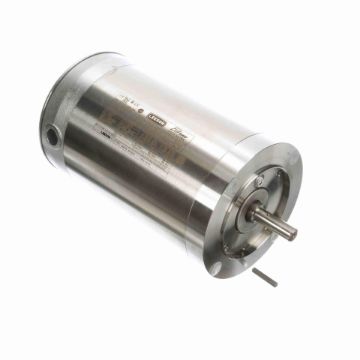

Picture of 119976.00 LEE
