3B5V64 BRN

Name: 3B5V64 BRN
Brand: Regal Rexnord
SKU: 3B5V64 BRN
Price: 195.21 USD
Availability: OutOfStock

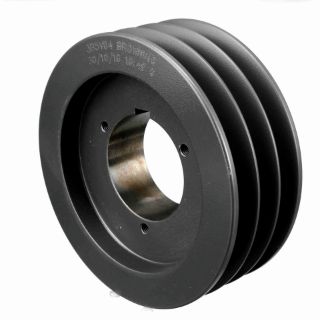

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

3694254

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$195.21 / EA

Description

Brand Name

Browning®

Type

Type 3

Description

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 3, Series: B5V®, Split Taper Bore, 1/2 to 1-15/16 in Bore Dia, 6.68 in Outside Dia, 6-1/2 in (5V)/6.2 in (A)/6.7 in (B), 3 Grooves, 2-7/16 in Face Width, 17/64 in Hub Projection, B Bushing, 2-29/32 in Overall Length, For Use With: Gripbelt® A and B, 5V Cross Section Belts, Cast Iron

Application

Aerospace, Aggregates. Mining and Cement, Alternative Energy, Food and Beverage, Forest Products, Grain, HVAC, Marine, Oil and Gas, Petrochemical, Plastics, Power Generation, Primary Metals, Pulp and Paper Industries

Features

Combination groove all Browning® B5V sheaves permit the running of A, 4L, B, 5L and 5V belts to be run in them
Broad horsepower coverage the B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 hp drives
Incorporates Browning® split taper bushing
The only bushing system that provides a true key-to-key drive to both the shaft and the hub
New casting design the B5V castings were developed using CAD and finite elements analysis to determine where to add and eliminate material

Specifications

Bore Diameter:	1/2 to 1-15/16 in
Bore Type:	Split Taper
Bushing Type:	B
Country of Origin:	MX
Face Width:	2-7/16 in
Hub Projection:	17/64 in
Material:	Cast Iron
Number of Grooves:	3
Outside Diameter:	6.68 in
Overall Length:	2-29/32 in
Pitch Diameter:	6-1/2 in (5V)/6.2 in (A)/6.7 in (B)
Series:	B5V®
Suitable For Use With:	Gripbelt® A and B, 5V Cross Section Belts
