35Q30LR14 DOD

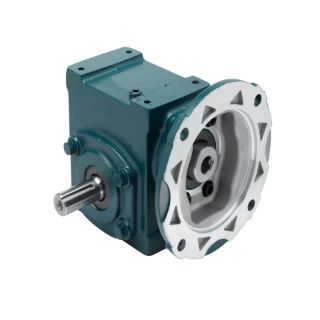

35Q30LR14 TIGEAR-2 REDUCER
Manufacturer: Dodge
Manufacturer part number: 35Q30LR14
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
$2,666.92

Product Details

Specifications

Base to Output Center Height:3.9900
Base to Output Center Height (Unit):INCH
Case Size:35
Center Distance:3.5000
Center Distance (Unit):INCH
Center to End of Shaft Distance:7.0600
Center to End of Shaft Distance (Unit):INCH
Gearbox Component Type:Gearbox
Horsepower Rating Input:4.1500
Horsepower Rating Input (Unit):HORSEPOWER
Horsepower Rating Output:3.4100
Horsepower Rating Output (Unit):HORSEPOWER
Housing Material:Cast Iron
Input Style:Quill
Lubrication:PAG, Standard Temperature
Motor Compatibility:NEMA Motor, 140TC Frame
Mounting Bolt Pattern Length:7.5000
Mounting Bolt Pattern Length (Unit):INCH
Mounting Bolt Pattern Width:4.0000
Mounting Bolt Pattern Width (Unit):INCH
Nominal Ratio:30.0000
Output Shaft:Double (Solid)
Output Shaft Center to Input Motor Mounting Face Distance:7.0900
Output Shaft Center to Input Motor Mounting Face Distance (Unit):INCH
Output Style:Left,Right
Overhung Load:2760
Overhung Load (Unit):POUND_FORCE
Paint Type:Standard
Rated Torque Output:3682
Rated Torque Output (Unit):INCH_POUND
Seal Type:Single-Lip Contact
Shaft Diameter Output:1.5000
Shaft Diameter Output (Unit):INCH
Shaft Length Output:3.5100
Shaft Length Output (Unit):INCH
Suitable For Washdown:No
Thermal Horsepower Rating:4.4300
Thermal Horsepower Rating (Unit):HORSEPOWER
