26Q50LR56 DOD

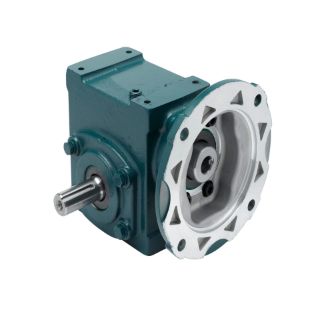

26Q50LR56 TIGEAR-2 REDUCER
Manufacturer: Dodge
Manufacturer part number: 26Q50LR56
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
$1,554.82

Product Details

Specifications

Base to Output Center Height:2.8700
Base to Output Center Height (Unit):INCH
Case Size:26
Center Distance:2.6300
Center Distance (Unit):INCH
Center to End of Shaft Distance:5.6300
Center to End of Shaft Distance (Unit):INCH
Gearbox Component Type:Gearbox
Horsepower Rating Input:1.3200
Horsepower Rating Input (Unit):HORSEPOWER
Horsepower Rating Output:0.9200
Horsepower Rating Output (Unit):HORSEPOWER
Housing Material:Cast Iron
Input Style:Quill
Lubrication:PAG, Standard Temperature
Motor Compatibility:NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:6.3800
Mounting Bolt Pattern Length (Unit):INCH
Mounting Bolt Pattern Width:3.3800
Mounting Bolt Pattern Width (Unit):INCH
Nominal Ratio:50.0000
Output Shaft:Double (Solid)
Output Shaft Center to Input Motor Mounting Face Distance:5.4900
Output Shaft Center to Input Motor Mounting Face Distance (Unit):INCH
Output Style:Left,Right
Overhung Load:1610
Overhung Load (Unit):POUND_FORCE
Paint Type:Standard
Rated Torque Output:1662
Rated Torque Output (Unit):INCH_POUND
Seal Type:Single-Lip Contact
Shaft Diameter Output:1.1250
Shaft Diameter Output (Unit):INCH
Shaft Length Output:2.6700
Shaft Length Output (Unit):INCH
Suitable For Washdown:No
Thermal Horsepower Rating:1.7600
Thermal Horsepower Rating (Unit):HORSEPOWER
