191569.00 LEE

Name: 191569.00 LEE
Brand: Leeson Electric
SKU: 191569.00 LEE
Price: 1,864.48 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

191569.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,864.48 / EA

Description

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Inverter Rated

Alternate Supplier #

Grainger - 48ZH76

Description

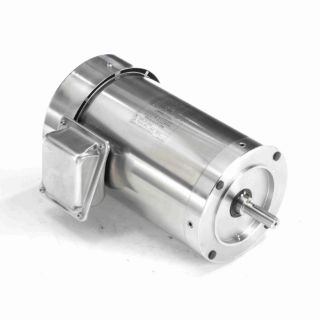

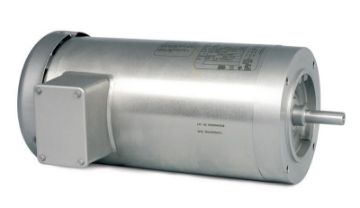

LEESON® Washguard® Washdown Motor, 4-Pole Squirrel Cage Inverter Rated, Special Features: Washdown Duty Motors, 2 hp, 208 to 230/460 V, 5.8 to 5.4/2.7 A, 60/50 Hz, 3 ph, 1750 rpm, 1 Speed, Totally Enclosed Fan Cooled, 56C Frame, 0.625 in Dia x 2.06 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Round Mount, 40 deg C, Insulation Class: Class F, Stainless Steel, 13.77 in L

Application

Baking Industry

Standards

BISSC Certified | CE Certified | CSA Certified | UL Recognized

Features

Washdown Duty Motors

Specifications

Amperage Rating:	5.8 to 5.4/2.7 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	13.77 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60/50 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 V
