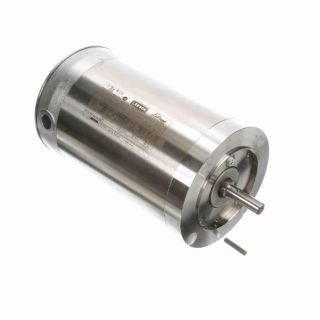

119976.00 LEE

Name: 119976.00 LEE
Brand: Leeson Electric
SKU: 119976.00 LEE
Price: 1,969.94 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

119976.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,969.94 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 798KM7

Description

LEESON® Washguard® Extreme Duck® AC Motor, 4-Pole Continuous Duty, 1 hp, 230/460 VAC, 2.8/1.4 A, 60 Hz Frequency, 3 ph, 1750 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 48.04 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 13.22 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Q-Car™ rotor cartridge for quick access
Double sealed ball bearings with high temperature grease
Non-wicking lead wires, 2-piece shaft seal with flinger
Chemical and abrasion resistant lead markers
Conduit box rotates 360 deg on TEFC models
Enhanced encapsulation process and IP69K enclosure protection
Total winding encapsulation using an epoxy resin
Exclusive IRIS® inverter duty insulation system provides extra protection and long life and especially in inverter-driven applications
CSA energy efficiency verification program and report number EEV 78720-1
IP69K enclosure protection color coded leads and full fact nameplate is laser etched on the motor frame
Exterior 300-series stainless steel resists corrosion and maintains strength for reliable operation
Patent-pending 360 deg rotatable conduit box
Designed for various degrees of ingress protection (IP69)
1.15 service factor increases reliability and motor life
Operational at 208-230/460 V at 60Hz.

Specifications

Amperage Rating:	2.8/1.4 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.22 in L
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	48.04 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
