109083.00 LEE

Name: 109083.00 LEE
Brand: Leeson Electric
SKU: 109083.00 LEE
Price: 1,995.43 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

109083.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,995.43 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Alternate Supplier #

Grainger - 48ZG87

Description

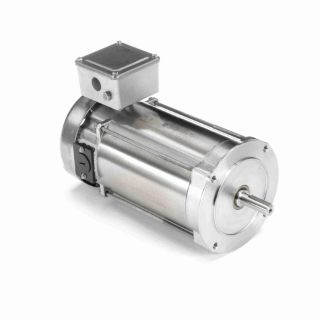

LEESON® Washguard® DC Motor, 4-Pole Continuous Duty Low Voltage, IEC Metric Motors Special Features, 0.50 hp Power, 180 VDC, 2.7 A, 1750 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, US56C Frame, 0.625 in Dia x 2.05 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 18 in-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 6.5 in Dia x 13.87 in L x 8.91 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	2.7 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	6.5 in Dia x 13.87 in L x 8.91 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	US56C
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Power Rating:	0.50 hp
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.625 in Dia x 2.05 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	18 in-lb
Voltage Rating:	180 VDC

Customers who bought this item also bought

SSF71840KB5GS BOS

MFG: Boston Gear

MFG#:SSF718-40K-B5-GS1

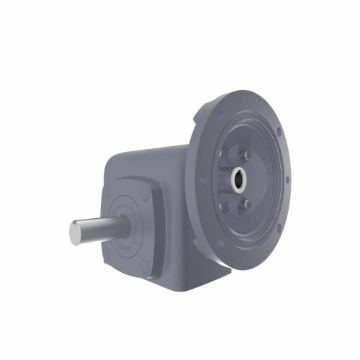

Info:Boston Gear® Original Domed Crown™ SSF718-40K-B5-GS1 SS700 Single Reduction Right Angle Helical Worm Gear Drive, Quill Flange Input, Solid Projecting Shaft Output, 0.57 hp Input/0.42 hp Output/0.5 hp Motor, 40:1 Gear Ratio, 43.8 rpm Maximum Output

$ -.--
